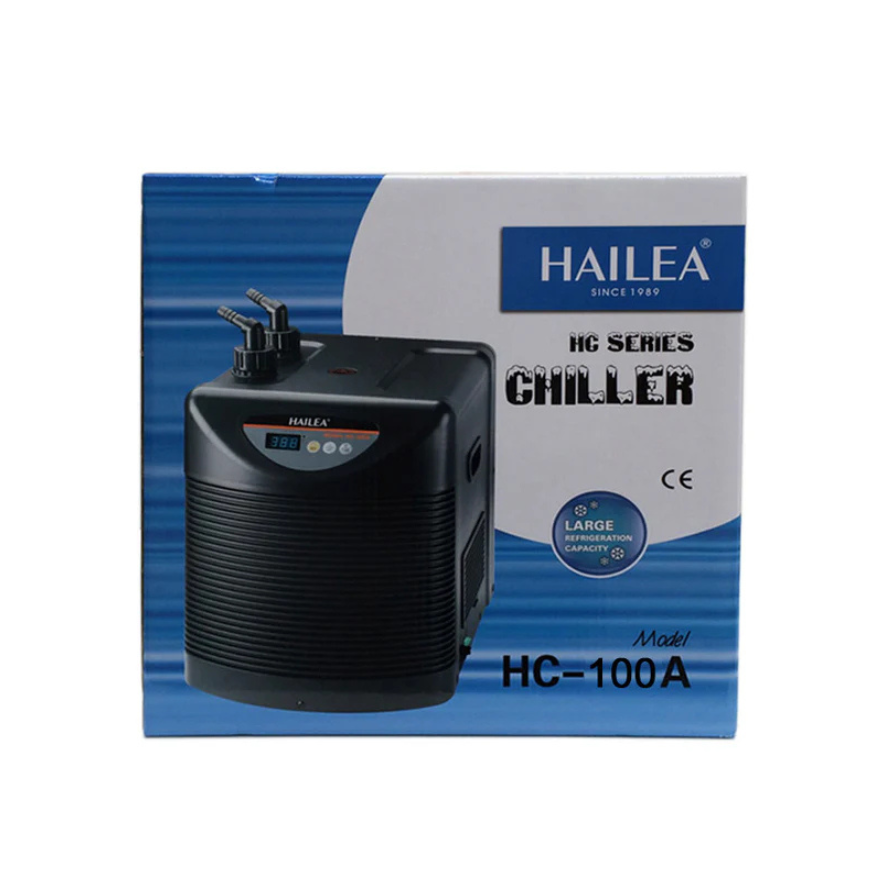

Hailea HC - 100A Chiller

Hailea HC‑100A Chiller

The Hailea HC‑100A is a compact yet powerful chiller tailored for small aquarium systems. It combines efficient cooling, solid design, and features suitable for both freshwater and marine environments.

Key Features & Benefits

• Cooling Capacity & Tank Size
  Designed for aquariums up to ~100 litres (though performance depends on ambient conditions and heat load)
• Power & Performance
  Uses a 1/20 HP compressor, draws around 0.6 A current
• Digital Control
  Features a digital temperature controller that allows precision to 0.1 °C increments
• Refrigerant & Heat Exchanger
  Uses environmentally friendly R134a refrigerant and a titanium heat exchanger (resistant to corrosion in fresh and saltwater)
• Flow Rate / Circulation Requirements
  Recommended water flow: 200 to 1000 L/h
• Auto‑Restart & Protection Features
  Has auto‑restart after power outages, plus built‑in protections for safe operation
• Noise & Build Quality
  Engineered for lower noise output, built on a strong metal chassis with modern styling
• Dimensions & Weight
  Approx. 338 × 218 × 325 mm; weight ~9.2 kg
• Operating Range
  Capable of cooling water down to ~4 °C in ideal conditions
• Connections
  Equipped to work with standard 13 mm (or 12/16 mm) tubing / hose fittings

Usage Considerations

• For consistent performance, match your water pump and flow rate to the chiller’s specifications.
• Keep the unit in a well‑ventilated area to dissipate heat from the condenser.
• Regular maintenance (e.g. cleaning internal components) helps preserve cooling efficiency.
• Ambient room temperature, aquarium lighting, and equipment heat loads will all affect how well the chiller can hold your target temperature.
